Hear Music and Games with Recording Studio Quality

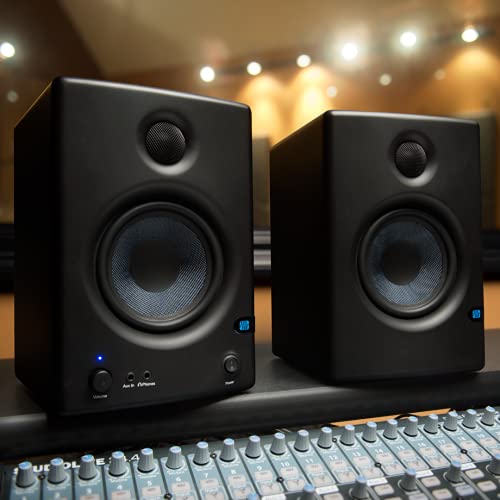

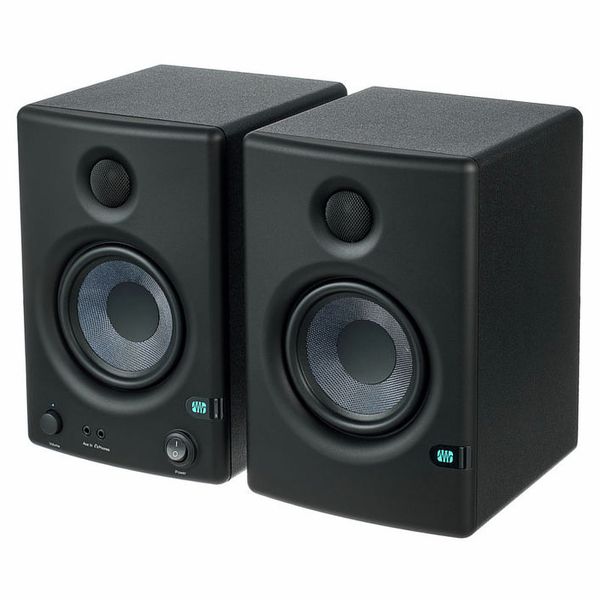

Eris E4.5 2-Way Active Studio Monitors: Accuracy Defined.
Sound you can trust.
PreSonus® Eris®-series studio monitors are used worldwide by audio engineers who need to hear every detail of their recordings. Ideal for music lovers, content creators, and gamers, Eris E4.5 media reference monitors deliver the same studio-quality sound and accurate frequency response professional Eris-series studio monitors are known for, in an elegant, compact form ideal for home use. Features like onboard EQ controls and an integrated headphone amplifier make it easy to adjust your Eris E4.5 monitors to taste for a customized listening experience.
Components and construction
- 4.5-inch (114 mm) woven composite low-frequency transducer
- 1-inch (25 mm), ultra-low-mass, silk-dome, high-frequency transducer
- Rear-firing acoustic port for superior bass-frequency reproduction
- Optimized, resonance-suppressing internal bracing
User controls
- High- and low-frequency tuning controls
- Front-panel Volume control for speakers and headphone amplifier
Power and safety
- 50 watt (25W/side), Class AB biamplification
- RF interference, output current limiting, over-temperature, transient, and subsonic protection
- Amplifier “soft start” feature eliminates popping on power-up
- Internal power supply with IEC connector
- Power switch with on/off LED

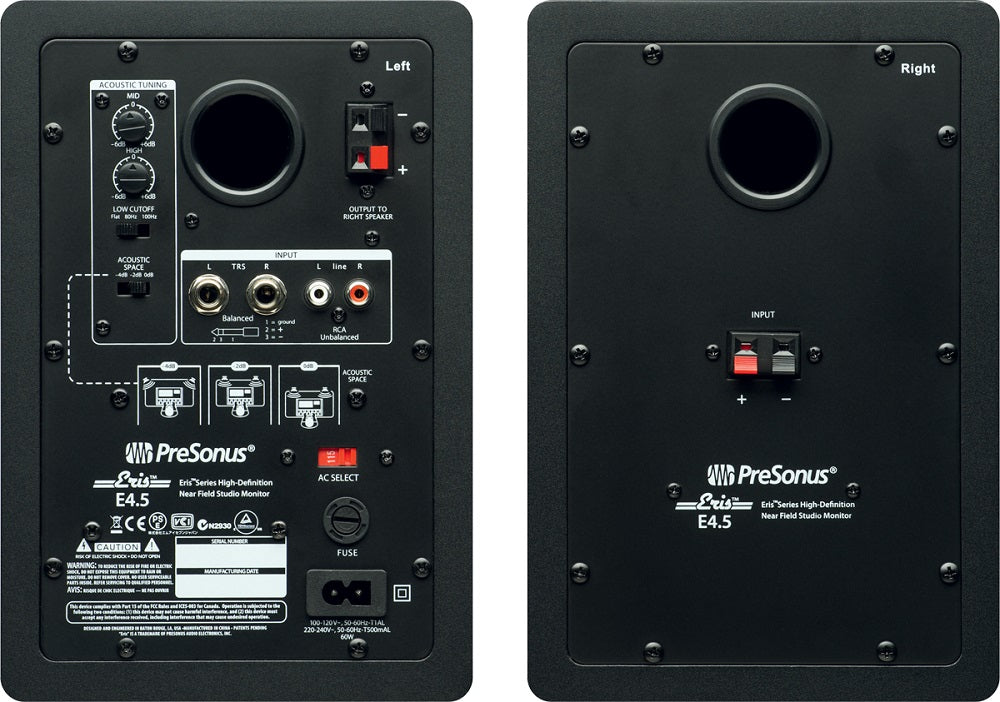

Inputs and outputs
- Balanced ¼-inch TRS, unbalanced 1/8-inch stereo, and RCA inputs
- Integrated stereo headphone amplifier with front-panel 1/8-inch output
Included Accessories
- Speaker wire
- 1/8-inch TRS to Stereo RCA cable
- Stereo RCA to Stereo TS cable
- Studio One® Prime and Studio Magic Software Suite
Technical Specifications
Inputs
|
|
|
1- Stereo 1/8" |
|
2- Balanced ¼” TRS |
|
2- Unbalanced RCA |
Performance
|
|
| Frequency Response |
70 Hz - 20 kHz |
| Crossover Frequency |
2.8 kHz |
| LF Amplifier Power |
25W/speaker |
| HF Amplifier Power |
(not biamped) |
| Peak SPL (@ 1 meter) |
100 dB |
| LF Driver |
4.5" |
| HF Driver |
1” silk dome |
| Input Impedance |
10 kΩ |
User Controls
|
|
| Volume Range |
A-type taper |
| MF Control |
Variable (-6 to +6 dB, center at 100 Hz) |
| HF Control |
Variable (-6 to +6 dB, center at 10 kHz) |
Protection
|
|
|
RF interference |
|
Output-current limiting |
|
Over-temperature |
|
Turn-on/off transient |
|
Subsonic filter |
|
External mains fuse |
Power
|
|
|
100-120V ~50/60 Hz or 220-240V ~50/60 Hz |
Cabinet
|
|
|
Vinyl-laminated, medium-density fiberboard |
Physical
|
|
| Width |
6.4" (163 mm) |
| Depth |
7." (180 mm) |
| Height |
9.5" (241 mm) |
| Weight |
13 lb. (5.9 kg) |
