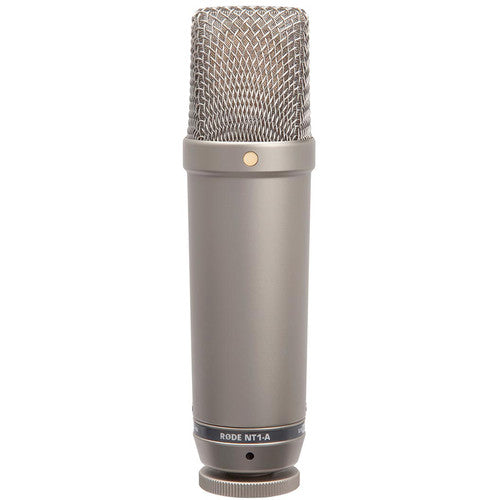

NT1-A
Large-diaphragm Cardioid Condenser Microphone
The NT1-A is an industry standard large-diaphragm condenser microphone. Delivering warmth and clarity, extended dynamic range, high SPL capability, and incredibly low self-noise, it’s a true studio workhorse, perfect for recording everything from vocals to acoustic guitar to drums.
Key Features:
- Large-diaphragm 1” gold-sputtered capsule
- Cardioid polar pattern
- Ultra-low self-noise (5dBA)
- Wide dynamic range
- Internal capsule shock mounting

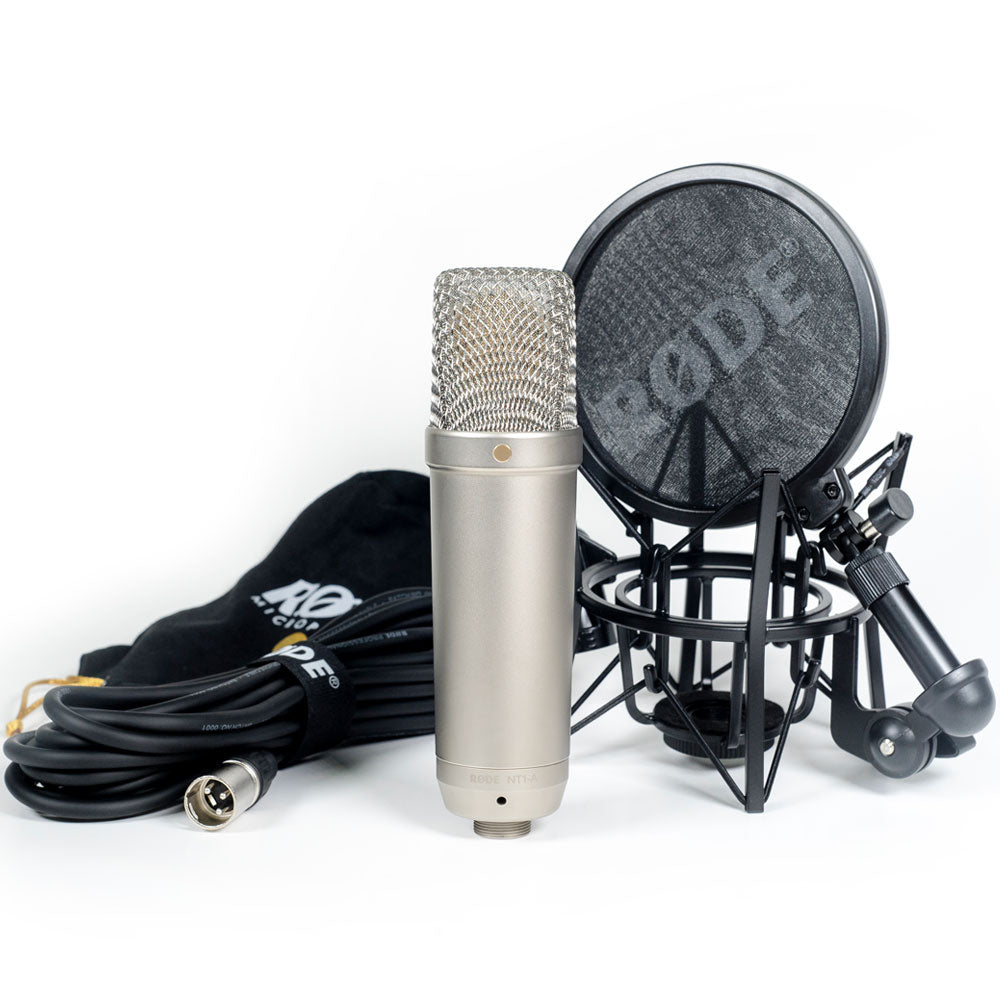

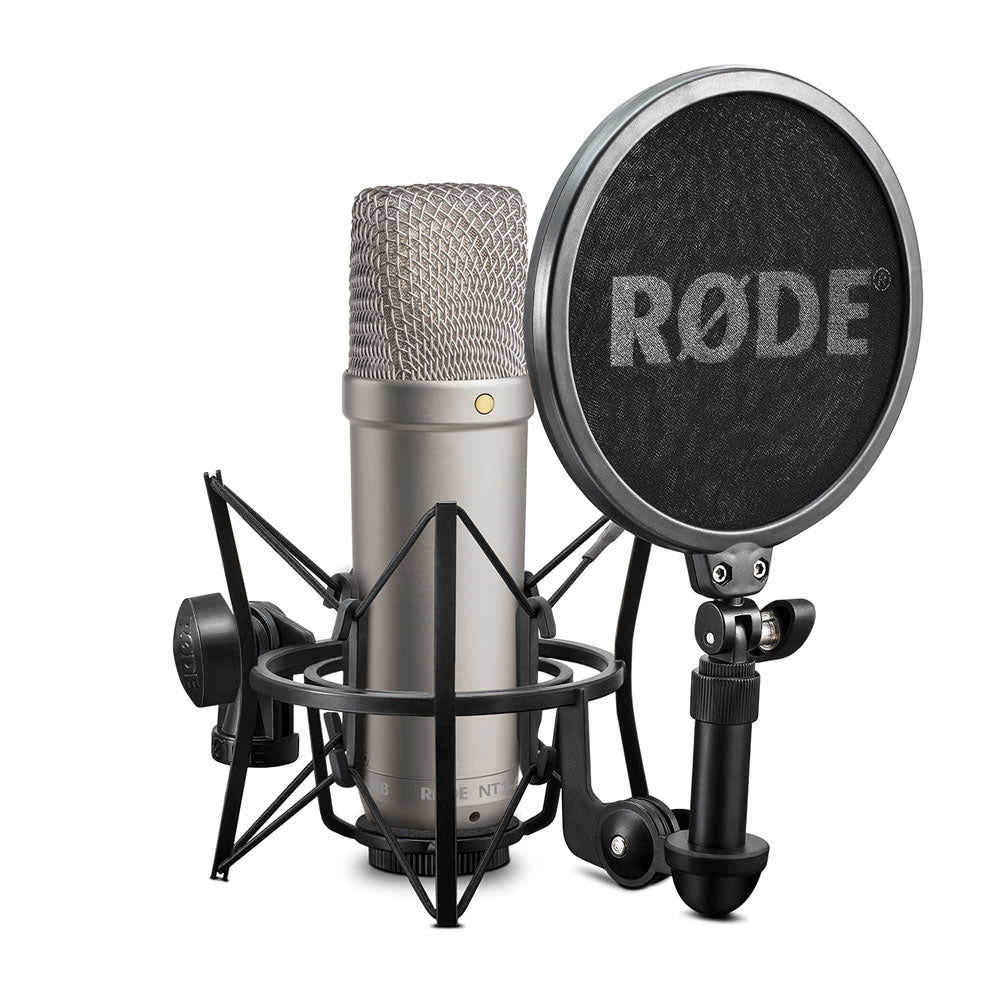

- Comes in complete recording kit, with a RØDE SM6 shock mount, pop filter and dust cover
Specifications
Acoustic & Electrical Specifications
Acoustic Principle
Pressure gradient
Active Electronics
JFET impedance converter with bipolar output buffer
Capsule
1.00"
Polar Pattern
Cardioid
Address Type
Side
Frequency Range
20 Hz-20 kHz
Output Impedance
100Ω
Maximum SPL
137dB SPL
Sensitivity
-32 dB re 1 Volt/Pascal (25 mV @ 94 dB SPL) +/- 2 dB @ 1kHz
Equivalent Noise Level (A-Weighted)
5dBA
Power Requirements
P24 or P48
Output Connection
3 pin XLR, balanced output between Pin 2 (+), Pin 3 (-) and Pin 1 (ground)
Maximum Output Level
13.7mV (@ 1kHz, 1% THD into 1KΩ load)
Mechanical Specifications
Weight (g)
326
Dimensions (mm)
Height: 190
Width: 50
Depth: 50
